Barracuda Wastewater Evaporator

The Barracuda Evaporator is a legacy product, parts, service and support are still provided by RWI Enhanced Evaporation. If you need a new evaporation unit, please see our available trajectory evaporators.


Barracuda Wastewater Evaporation Unit Features:
  • Fan's airflow: 78 mph
  • 3 wheel, trailer, float mounted, or skid mounted
  • Oil field duty construction
  • 360º directional rotation
  • PLC controlled automated wind speed & direction control system available
  • New rubberized powder coating for better protection
  • Designed to be used in areas where overspray is less of a concern
  • Produces a large spray pattern allowing for longer float times and greater evaporation rates

Water Delivery System

  • Pump packages available
  • Stainless steel manifold with 30 nozzles
  • Flow rate up to 87 gpm
  • Water pressure: 80-100 psi


  • 460v 3-phase
  • NEMA 4x SS Control Panel with 2 start/stop controls
  • 7.5HP 1765rpm chem/mill duty motor for extreme conditions
  • 50Hz compatible


  • Aluminum blades and hub
  • Fan width of 24"
  • Optional coating available upon request


  • 12 Months parts & labor

Do you need to have your RWI Enhanced Evaporation Barracuda Evaporator serviced? Contact us!

Request A Service Quote

Product Photos

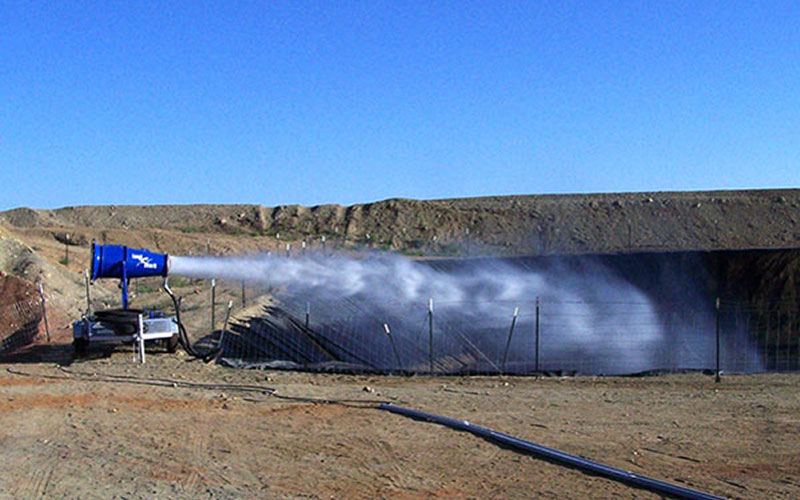

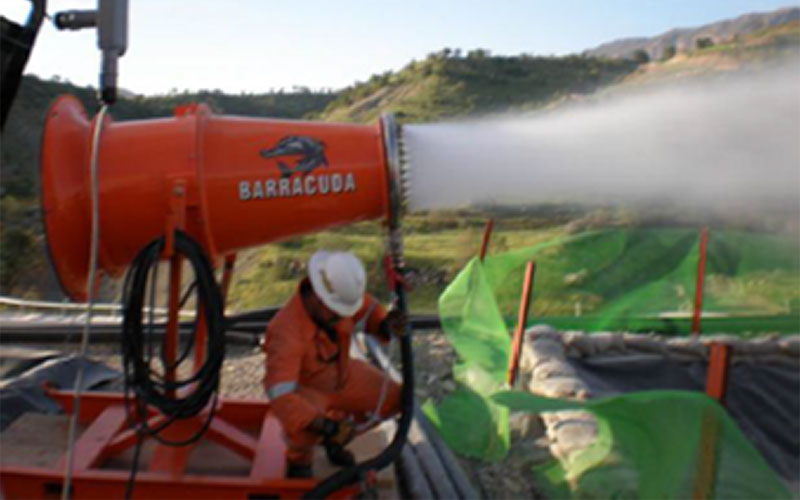

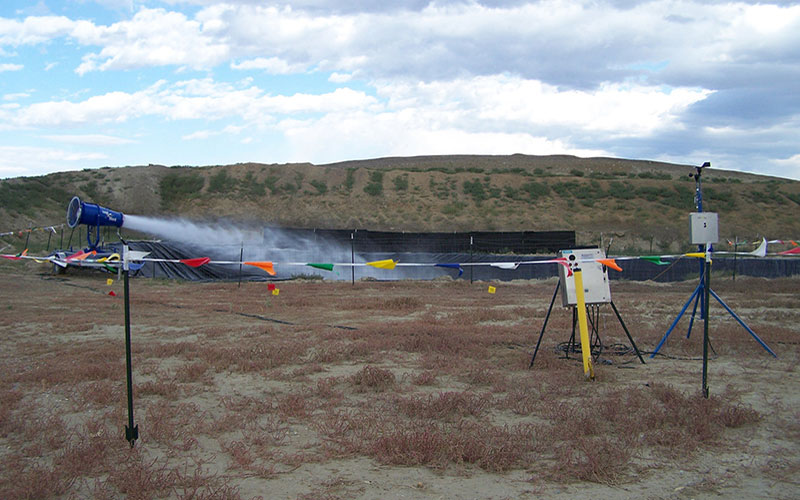

View the Barracuda in action in the following images. For more imagery on all of our products, please click the link below.

View Gallery

  • slide
  • slide
  • slide
